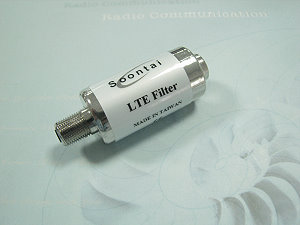

LTE Filters
|
|
|
|
Features
* Class A RFI Shielding
* Low Loss
* High Rejection
* Excellent Return Loss
* Flat Passband
* High Stability
* Excellent Mechanical Structure
* Precision Connector Thread
* Exquisite Plating Quality
* Good Weather Resistance
  download
|
 |
|
|
|
|
Introduction
LTE is the 4th generation mobile communication standard. This standard uses the frequency band next to the DVB-T band (790 - 862MHz in Europe, 698 - 806MHz in the Americas), which will lead to interferences with DVB TV or
set-top-boxes. According to tests from Ofcom this interference can be eliminated with the help of a high rejection low pass filter.
In digital TV reception, our LTE filter can effectively filter out the interference of LTE signals.
As a professional filter designer, Soontai can offer the LTE filter in a variety of packages and frequencies for various markets. Your inquiries are welcome.
For more filter information please see the filter profile technical notes in our Tech Support.
Custom filters or more details on inquires, please refer to Custom Filters.
> Related products, High Q-factor LPF
|
|
|
|
|
|
|
Items
| Model |
Pass Band |
Model |
Pass Band |
| LPF - 694 |
5 - 694MHz |
LPF - 774 |
5 - 774MHz |
| LPF - 758 |
5 - 758MHz |
LPF - 787 |
5 - 787MHz |
| LPF - 766 |
5 - 766MHz |
LPF - 790 |
5 - 790MHz |
|
|
|
|
|
|
|
General Specifications
| Item |
LPF - 694 |
| Impedance |
75 ohm |
| Pass Band |
5 - 694MHz |
|
Stop Band |
735 - 1000MHz |
|
Dimensions (incl. M/F connectors) |
11(¢) x 46(L) mm |
|
Net Weight |
17.5g |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
