Rotation Type
Mini High Pass Filter
|
|
|
|
Features
* Small and Light Weight
* Wide Band
* Rejection : 45dB
* Low Loss
* Excellent Return Loss
* High Stability
* Excellent Mechanical Structure
* Precision Connector Thread
* Exquisite Plating Quality
* Good Weather Resistance
* Brass Housing
|
 |
|
|
|
|
Introduction
This series of mini size high pass filter features a rotatable male F-type connector for easier installation, especially for tight spaces or in Japanese market.
It has excellent electrical specifications, low insertion loss, high reject rate and excellent return loss.
It is suitable for many communication applications such as TV, CATV, Cablenet and other RF systems.
For more filter information please see the filter profile technical notes in our Tech Support.
Custom filters or more details on inquires, please refer to Custom Filters.
|
|
|
|
|
|
|
Items
| Model |
Pass Band |
Model |
Pass Band |
| HPF - 15MR |
15 - 1000 MHz |
HPF - 43MR |
43 - 1000 MHz |
| HPF - 18MR |
18 - 1000 MHz |
HPF - 50MR |
50 - 1000 MHz |
| HPF - 20MR |
20 - 1000 MHz |
HPF - 54MR |
54 - 1000 MHz |
| HPF - 25MR |
25 - 1000 MHz |
HPF - 65MR |
65 - 1000 MHz |
| HPF - 30MR |
30 - 1000 MHz |
HPF - 70MR |
70 - 1000 MHz |
| HPF - 35MR |
35 - 1000 MHz |
HPF - 80MR |
80 - 1000 MHz |
| HPF - 40MR |
40 - 1000 MHz |
HPF - 85MR |
85 - 1000 MHz |
|
|
|
|
|
|
|
Electrical Curve ( HPF-54MR )
Insertion Loss | Return Loss
SPAN 100MHz
Fig 1 |

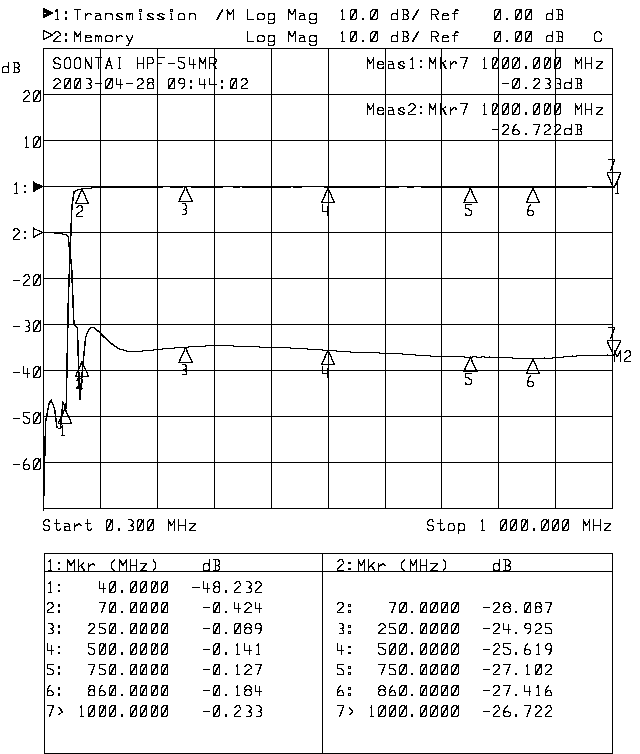

Insertion Loss | Return Loss
SPAN 1000MHz
Fig 2 |
|
|
|
|
|
|
|
General Specifications
| Item |
HPF - 54MR |
| Impedance |
75 ohm |
| Pass Band |
54 - 1000MHz |
Insertion Loss (54-70MHz)
Insertion Loss (71-1000MHz) |
1.2dB (typ) / 2.0dB (max)
0.5dB (typ) / 1.0dB (max) |
Return Loss (54-70MHz)
Return Loss (71-1000MHz) |
16dB (typ) / 12dB (min)
20dB (typ) / 16dB (min) |
Rejection (5-36MHz)
Rejection (36-40MHz) |
45dB (typ) / 40dB (min)
40dB (typ) / 35dB (min) |
| Dimensions |
13(¢) x 40.5(L) mm |
| Net Weight |
17g |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
