DVB-T
High Pass Filter

Features

* Class A RFI Shielding

* Low Loss

* High Rejection

* Excellent Return Loss

* Flat Passband

* High Stability

* Excellent Mechanical Structure

* Precision Connectors/ Thread

* Exquisite Plating Processing

* Brass Housing

Introduction

This high pass filter series is specifically designed for use in DVB systems for filtering interference frequencies to increase reception sensitivity.

Six different kinds of connectors can be selected for compatibility with all DVB receiver requirements.

These high pass filter series are suitable for various DVB systems such as ATSC, DVB-T, ISDB-T, DVB-C, DTMB, T-DMB, etc.

We can design other models accroding to your specifications.

For more filter products, please see our filter category.

To learn more about filter types, please see the filter profile technical notes in our Tech Support.

Custom filters or more details on inquires, please refer to Custom Filters.

**Items**
Model	Pass Band	Connector 1	Connector 2	Housing
HPF-470MA HPF-150MA	UHF VHF+UHF	F, Male	F, Female
IEM HF-470/EF IEM HF-150/EF	UHF VHF+UHF	IEC, Male	IEC, Female
IEM HF-470/FF IEM HF-150/FF	UHF VHF+UHF	IEC, Male	F, Female
HPF-470RMR HPF-150RMR	UHF VHF+UHF	F, Male	F, Female
IEM HF-470R/FF IEM HF-150R/FF	UHF VHF+UHF	IEC, Male	F, Female
IEM HF-470R/EF IEM HF-150R/EF	UHF VHF+UHF	IEC, Male	IEC, Female

* UHF Band=470-1000MHz VHF+UHF Band=150-1000MHz
* We can design other models according to your specifications.

**General Specifications**
Item	HPF-470MA	IEM HF-150R/EF
Impedance	75 ohm
Connector 1	type-F Male	type-IEC Male
Connector 2	type-F Female	type-IEC Femal
Pass Band	470 - 1000MHz	150 - 1000MHz
Insertion Loss	0.3dB (typ)	0.3dB (typ)
Return Loss	18dB (typ)	18dB (typ)
Stop Band	10-350MHz	10-108MHz
Rejection	50dB (typ)	50dB (typ)

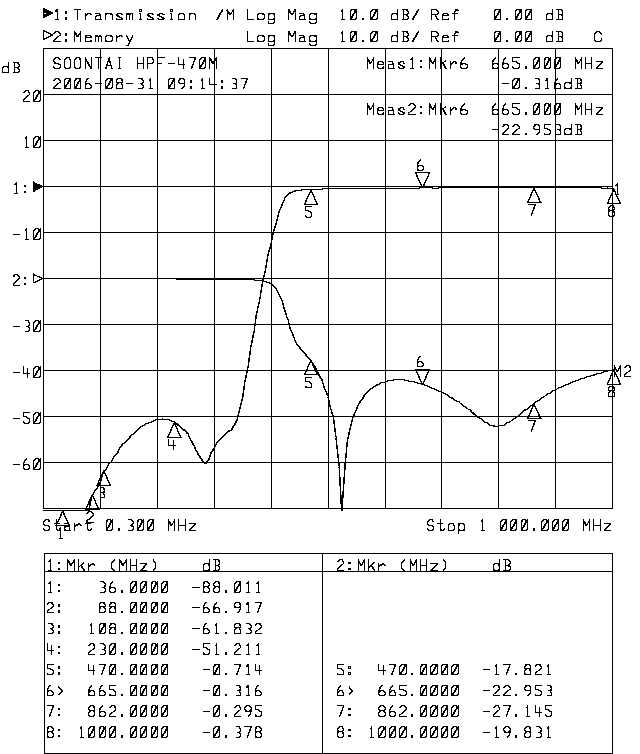

Electrical Curve
Dimensions	12.5(¢) x 41(L) mm	11(¢) x25.4(W) x 38(L) mm
Net Weight	17 g	18 g

* Specifications may be change depending on the model or customer's requirement.
