Band Pass Filter
|
|
|
|
Features
* Class A RFI Shielding
* Zinc Alloy Die-cast Housing
* Low Cost
* Support DOCSIS 3.1
* Low Loss
* Good Return Loss
* Rejection > 40dB
* Flat Passband
* High Stability
|
 |
|
|
|
|
Introduction
The BPF2 series is our economically priced version of band pass filters with one-piece zinc alloy die-cast housing design for a robust connection to prevent connector fall off.
The electrical specifications are also very good.
We can design different pass band according to your specifications.
For more filter information please see the filter profile technical notes in our Tech Support.
Custom filters or more details on inquires, please refer to Custom Filters.
|
|
|
|
|
|
|
Items
| Model |
Pass Band |
Model |
Pass Band |
| BPF2-54-216 |
54 - 216 MHz |
BPF2-350-550 |
350 - 550 MHz |
| BPF2-54-550 |
54 - 550 MHz |
BPF2-450-550 |
450 - 550 MHz |
| BPF2-85-216 |
85 - 216 MHz |
BPF2-470-600 |
470 - 600 MHz |
| BPF2-85-470 |
85 - 470 MHz |
BPF2-470-862 |
470 - 862 MHz |
| BPF2-174-216 |
174 - 216 MHz |
BPF2-550-862 |
550 - 862 MHz |
| BPF2-174-230 |
174 - 230 MHz |
|
|
|
|
|
|
|
|
|

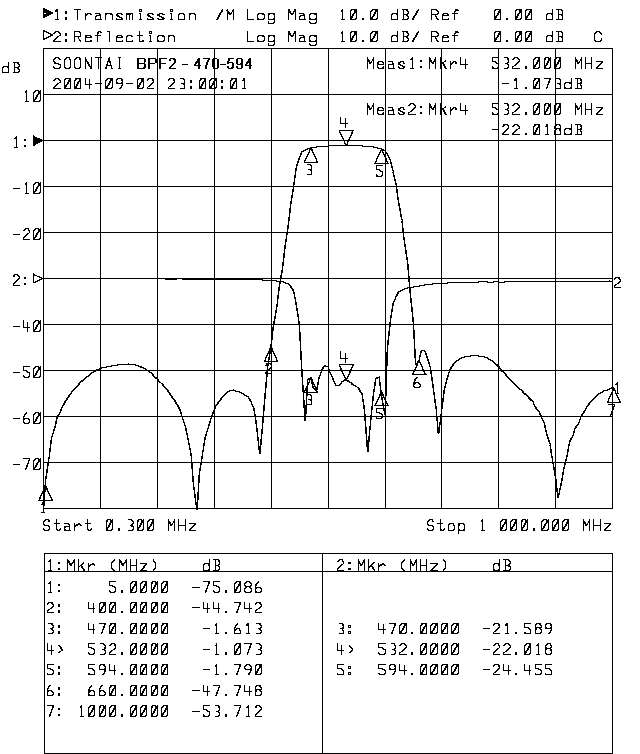

Electrical Curve ( BPF2-470-594 )
Insertion Loss | Return Loss
SPAN 1000MHz
Fig 1 |
Insertion Loss | Return Loss
SPAN 1000MHz
Fig 2 |
|
|
|
|
|
|
|
General Specifications
| Item |
BPF2-470-594 |
| Impedance |
75 ohm |
| Frequency Range |
5 - 1000MHz |
| Pass Band |
470 - 594MHz |
| Insertion Loss (470-594MHz) |
1.2dB (typ) /
3.0dB (max) |
| Return Loss (470-594MHz) |
16dB (typ) /
10dB (min) |
| Rejection (5-400MHz) |
50dB (typ) / 40dB (min) |
| Rejection (660-1000MHz) |
50dB (typ) / 40dB (min) |
| Dimensions (incl. M/F connectors) |
17(H) x 59.5(W) x 17(D) mm |
| Net Weight |
26.5g |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
