SGP2 6 kV series
Coaxial Surge Protector

Features

* Powerful, Robust

* Up to 6 kV Surge Protection

* Wide Band : 3 GHz

* Low Insertion Loss : 0.2 dB

* Excellent Return Loss

* Robust Die-casting Housing

* High RFI Shielding

* Precision Connector Thread

* Ground Wire Sceew Hole

* Exquisite Plating Quality

* Good Weather Resistance

Introduction

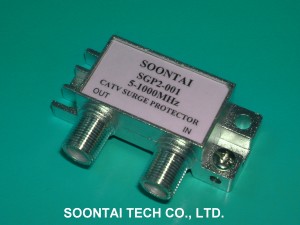

The SGP2 is a wideband, low insertion loss and robust coaxial surge protector, the surge withstanding
up to +/- 6 kV / 3 kA

It is designed for application in TV, CATV, DOCSIS, MoCA and satellite-IF systems to reduce the risk of surges caused by lightning and power entering the coaxial cable, to protect equipment or personnel.

The SGP2 surge protector is very suitable to connect to TV antennas, CATV entry, to protect indoor set-top boxes, DVRs, cable modems and TV sets.

The SGP2 has two flexible screw mounting holes, one screw mounting hole and one grounding screw hole for easy mounting and ground wire installation for safety.

> More Surge Protectors

**Items**
Model	Pass Band	Protection Structure	IN / OUT Connector	IN - OUT
SGP6-626P	3 GHz	GDT	F-female / F-male	Power Passing
SGP6-626	3 GHz	GDT	F-female / F-male	DC Block

**General Specifications**
Item	SGP2-630P
Impedance	75 Ohm
Frequency Range	5 - 3000 MHz

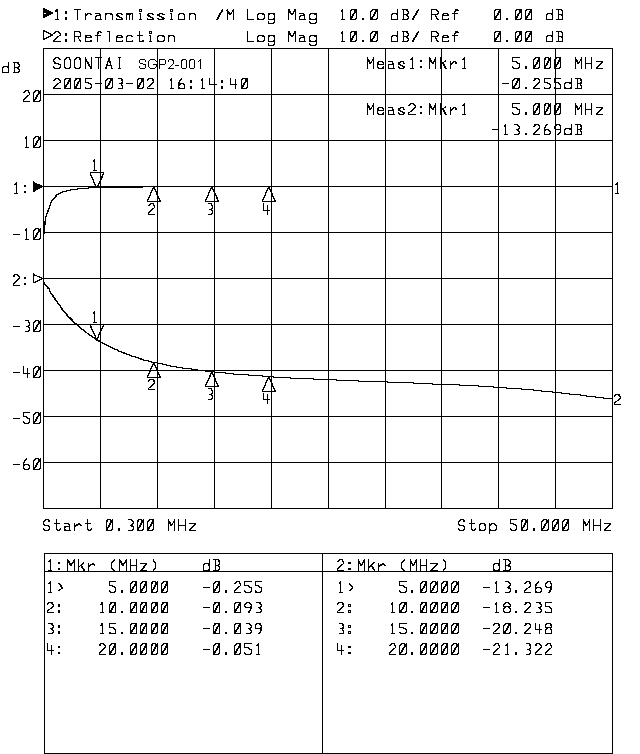

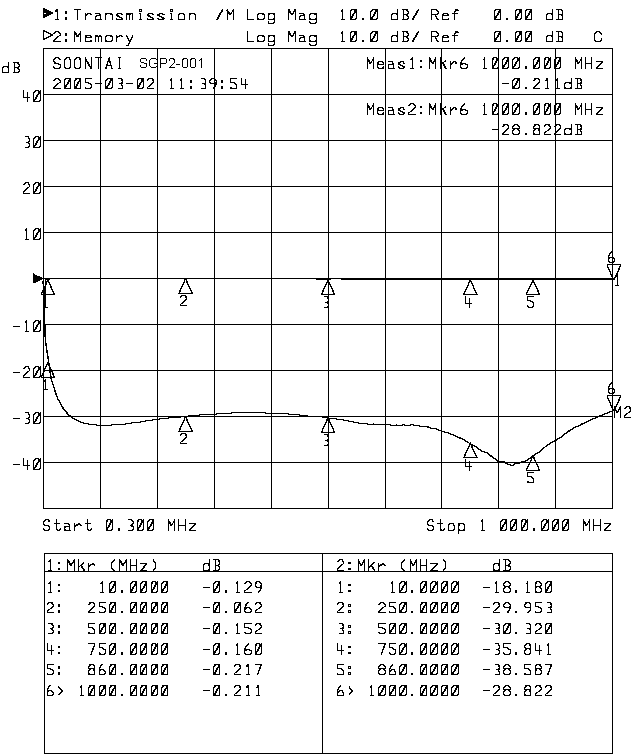

Insertion Loss (5-3000MHz)	0.2 dB(typ) @ 1.5 GHz
Return Loss (5-3000 MHz)	20 dB(typ)
DC Power Passing	0.5 A/ 50 V(max)
Surge Handling Capability	IEC 61000-4-5 Level 6 kV
Dimensions	18(H) x 54(W) x 15(D) mm
Net Weight(approx.)	46.5 g

* Specifications may be change according to customer's requirements.
