50 Ohm
3 GHz N Attenuators
|
|
|
|
Features
* Up to 3 GHz
* Excellent Return Loss
* High Accuracy
* Precision Connector Thread
* Exquisite Plating Quality
* Body Color can be Customized
|
 |
|
|
|
|
Introduction
The AT11 is high performance 50 ohm N-type connectors attenuator series with 2W power ratting.
AT11 series boast highly accurate attenuation up to 3 GHz with excellent return loss. This makes this series an indispensable laboratory grade attenuator.

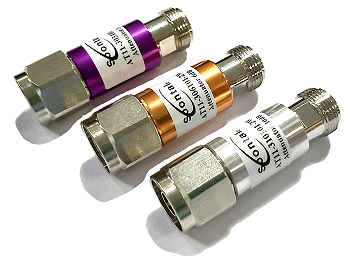

Standard models, the body color is aluminum's color, but other colors can also be customized.
|
|
|
|
|
|
|
Items (Standard Models)
| Model |
Attenuation |
Model |
Attenuation |
| AT11 - 303101-2W |
3dB |
AT11 - 305101-2W |
5dB |
| AT11 - 306101-2W |
6dB |
AT11 - 310101-2W |
10dB |
| AT11 - 309101-2W |
9dB |
AT11 - 315101-2W |
15dB |
| AT11 - 312101-2W |
12dB |
AT11 - 320101-2W |
20dB |
| AT11 - 316101-2W |
16dB |
AT11 - 325101-2W |
25dB |
| AT11 - 318101-2W |
18dB |
AT11 - 330101-2W |
30dB |
| |
|
AT11 - 33510-2W |
35dB |
| |
|
AT11 - 340101-2W |
40dB |
|
|
|
|
|
|
|
|
|
General Specifications
| Item |
AT11-310101-2W |
| Impedance |
50 Ohm |
| Frequency Range |
9 kHz - 3 GHz |
| Insertion Loss |
10dB+/-0.5dB(max) |
| Return Loss |
22dB (typ) / 20dB (min) |
| Maximum Input Power |
2W (avg.) |
| DC Block |
No |
| Connector Type |
Male & Female N-type |
| Dimensions |
18(¢) x 59.2(L) mm |
| Net Weight |
66 g |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
