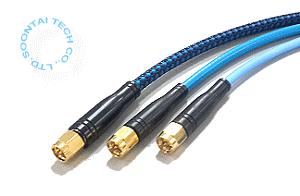

50 Ohm 18/ 20GHz
SMA Cable Assemblies




Features

* High Quality Cable

* Up to 20 GHz

* Low Insertion Loss

* Excellent Return Loss

* High Precision Connectors

* Meet IEC 61196-1-314 Flex Test

* 100% QC




  CC20-31M brochure.pdf



Introduction

The CC18-31M31M68 is a series of high performance cable assemblies with male SMA connectors on both sides. It is designed for general laboratory measurement or production line testing requirements as well as 50 ohm communication system applications.

The series boasts excellent electrical characteristics like low insertion loss and excellent return loss up to 20 GHz as well as outstanding mechanical durability.

They are ideal for general test or signal connections in 50 ohm communication systems such as 4G / 5G, WiFi, Bluetooth and more.


  Items
Model Freq. Range Cable Length Return Loss Con.
CC18-31M31M68-0S01-0600 18 GHz Flexible 60 cm 18 dB G
CC18-31M31M68-0S03-0600 18 GHz Flexible 60 cm 18 dB S
CC18-31M31M68-0S02-0600 18 GHz Flexible 60 cm 20 dB G
CC18-31M31M68-0S04-0600 18 GHz Flexible 60 cm 20 dB S
CC20-31M31M68-0S01-0600 20 GHz Flexible 60 cm 20 dB G
CC20-31M31M68-0S02-0600 20 GHz Flexible 60 cm 20 dB S
 * Connector material, G = gold-plated brass  S = stainless steel
 * Please specify cable length when ordering(e.g. 30cm, 60cm, 100cm,...)
 * The cable length include both connectors
  General Specifications
 Item CC20-31M31M68-0S01-0600 CC18-31M31M68-0S02-0600 CC18-31M31M68-0S01-0600
 Impedance 50 ohm 50 ohm 50 ohm
 Frequency Range 9 kHz - 20 GHz 9 kHz - 18 GHz 9 kHz - 18 GHz
 Insertion Loss 1.3dB (typ)
1.6dB (max)
1.3dB (typ)
1.6dB (max)
1.4dB (typ)
1.7dB (max)
 Return Loss
 ( < 8 GHz)
26 dB(typ)
22 dB(min)
24 dB(typ)
20 dB(min)
20 dB(typ)
18 dB(min)
 Return Loss
 ( < 18 GHz)
26 dB(typ)
22 dB(min)
24 dB(typ)
20 dB(min)
20 dB(typ)
18 dB(min)
 Return Loss
 ( < 20 GHz)
24 dB(typ)
18 dB(min)
- -
 Length 60 cm 60 cm 60 cm
 Connector Material Gold-plated Brass Gold-plated Brass Gold-plated Brass
 Connector Type Both side SMA-male
 * Specifications may be change depending on the model or customer's requirement.
