    SOONTAI TECH CO., LTD.
    Registered to ISO 9001
    Certificate TW12/11128







75 Ohm 3 GHz
High Performance F-female Adapter




Features

* High Performance

* Up to 3 GHz

* Excellent Return Loss

* Low Insertion Loss

* Rugged Mechanical Structure

* High Precision

* High Stability

* Exquisite Plating Quality

75 Ohm 3GHz F-81 adapter

Introduction

The AD03-75F75F-0Z01 is a high performance F-female type adapter with excellent return loss and low loss up to 3 GHz.

This makes it an ideal choice for lab measurement requirement or advanced communication devices.

It is also very suitable for production line testing or general signal connections such as DVB-T, ATSC, CATV, MoCA, DOCSIS, cable modem, satellite-IF,...etc.


  General Specifications
  Item AD03-75F75F-0Z01
  Impedance 75 Ohm
  Frequency Range 5 - 3000 MHz
  Insertion Loss 0.08dB (typ) / 0.3dB (max)
  Return Loss (< 1000 MHz) 30dB (typ) / 25dB (min)
  Return Loss (< 3000 MHz) 25dB (typ) / 20dB (min)
  Connector Both side, F-female type

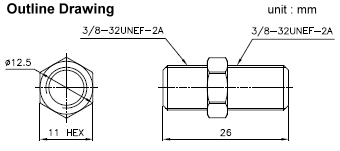

  Dimensions 12.5(¢) x 26 mm
  Net Weight 6.5 g
 * Specifications may be change depending on the model or customer's requirement.
