50 Ohm 67 GHz

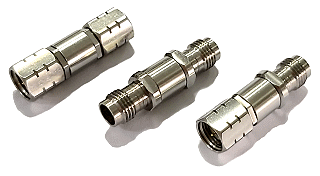

1.85mm Through Adapters
|
|
|
|
Features
* Excellent Return Loss
* Low Insertion Loss
* Excellent Mechanical Structure
* High Precision
* High Stability
* Exquisite Plating Quality
* Good Weather Resistance
|
 |
|
|
|
|
Introduction
Precision adapters are widely used in lab or field applications. These adapters must be high quality and well performance to ensure accurate result.
Soontai offer a complete test grade adapters including 1.85mm(V), 2.4mm(Q), 2.92mm(K) and others for selection.
With low insertion loss and excellent return loss performance, they are suitable for use in test equipments and analyzers. Stainless Steel configuration enable longer life constantly settings.
|
|
|
|
|
|
|
|
|
General Specifications
| Item |
AD67-18M18M-0Q01 |
AD67-18F18F-0Q01 |
AD67-18F18M-0Q01 |
| Impedance |
50 Ohm |
50 Ohm |
50 Ohm |
| Frequency Range |
9 kHz - 67 GHz |
9 kHz - 67 GHz |
9 kHz - 67 GHz |
| Return Loss |
19dB (min) |
19dB (min) |
19dB (min) |
| Connector Type |
1.85mm-male to 1.85mm-male |
1.85mm-female to 1.85mm-female |
1.85mm-male to 1.85mm-female |
| Housing Material |
Passivated Stainless Steel |
| Center Pin Material |
Gold-plated Beryllium Copper |
* Specifications may be change depending on the model or customer's requirement.
|
|
|
|
